SKU :

Specifications

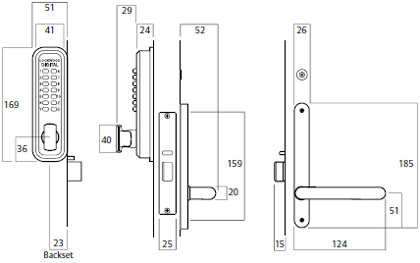

Backset

• Open-out door: 23, 25.4, 30 and 38mm.

• Open-in door: 38mm recommended.

• Installation of 23, 25.4 or 30mm on open-in doors would require the door stop to be machined to clear the digital pad.

Door Thickness
32 to 50mm for timber doors. 35 to 50mm for metal doors.

Options: Also available in double keypad version, which provides a keypad on each side of the door.

For product availability please, contact customer service or your local sales office.

Door Furniture
Lockwood 4800 and 5800 Series (ordered separately).

Combination of 3582 Series Short Backset Cylinder Mortice Lock, Lockwood 4800 and 5800 Series Furniture and Digital Access Pad to provide keyless entry.

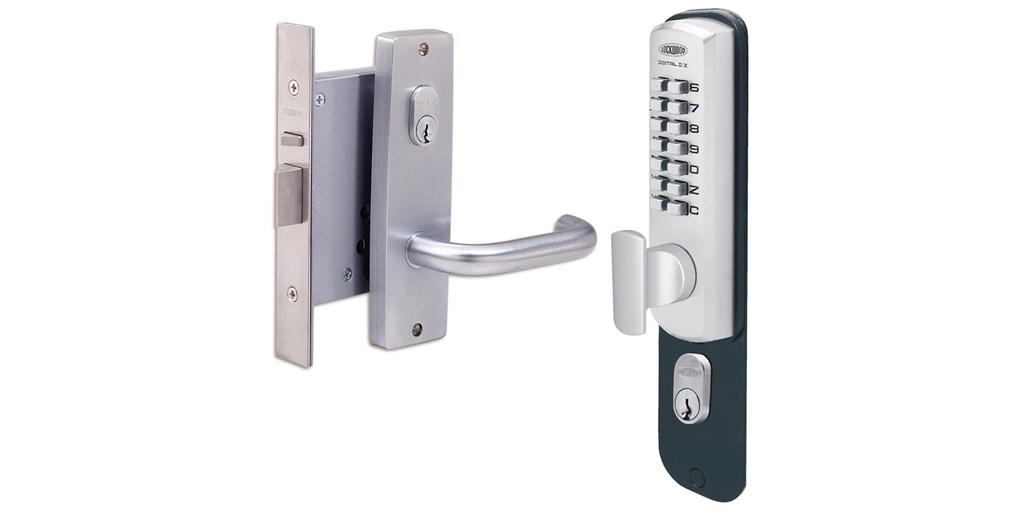

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.

The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.

Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.

Ordering

3582DX Digital Lockset

Downloads
