SKU : 1341

Specifications

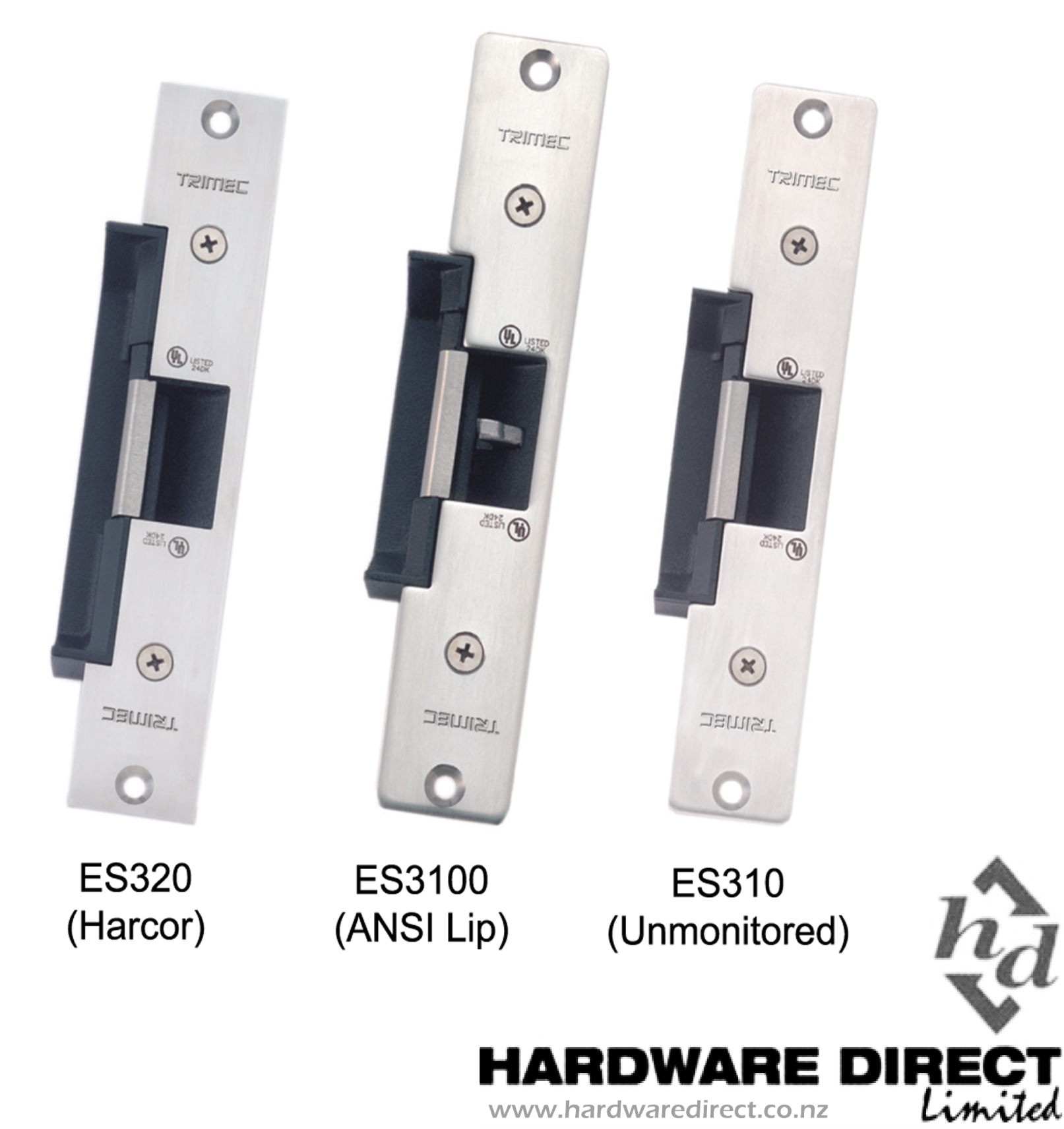

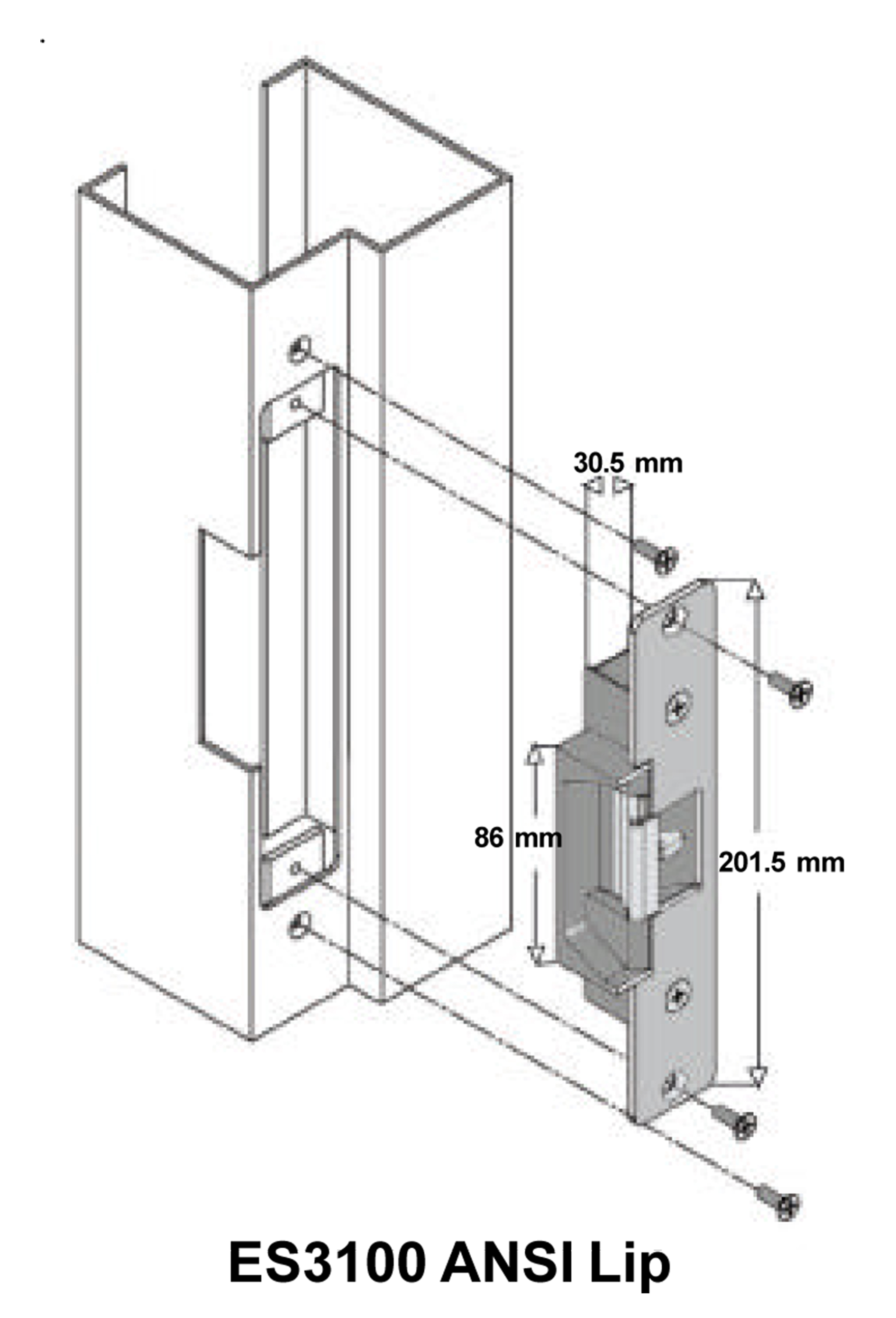

The ES300/ES3000 series of patented Burglar Resistant Strikes are designed  for high security applications and manufactured from solid stainless steel, offering a strong dependable and long lasting electric strike solution. A wide variety of face plates in differing widths are available including a Large ANSI plate (supplied as standard) that make the ES300/3000 an ideal electric strike for retrofit and new applications.

Electrical - 175mA at 12vdc - 88mA at 24vdc. Solenoids are rated for continuous use.
Monitoring
Solenoid Monitor = 3 amp NO/NC microswitch
Door/Latch = 3amp NO/NC microswitch
Mechanical - Suitable for 18mm latch tongue with 3mm door gap. Static tested to 1,363kg (2998 lbs) holding force
Warranty - Protected by TRICARE 5 year warranty
Environment - Operational temperature range -20 to +60 degrees

Click here to view technical information
