SKU : 1330

Specifications

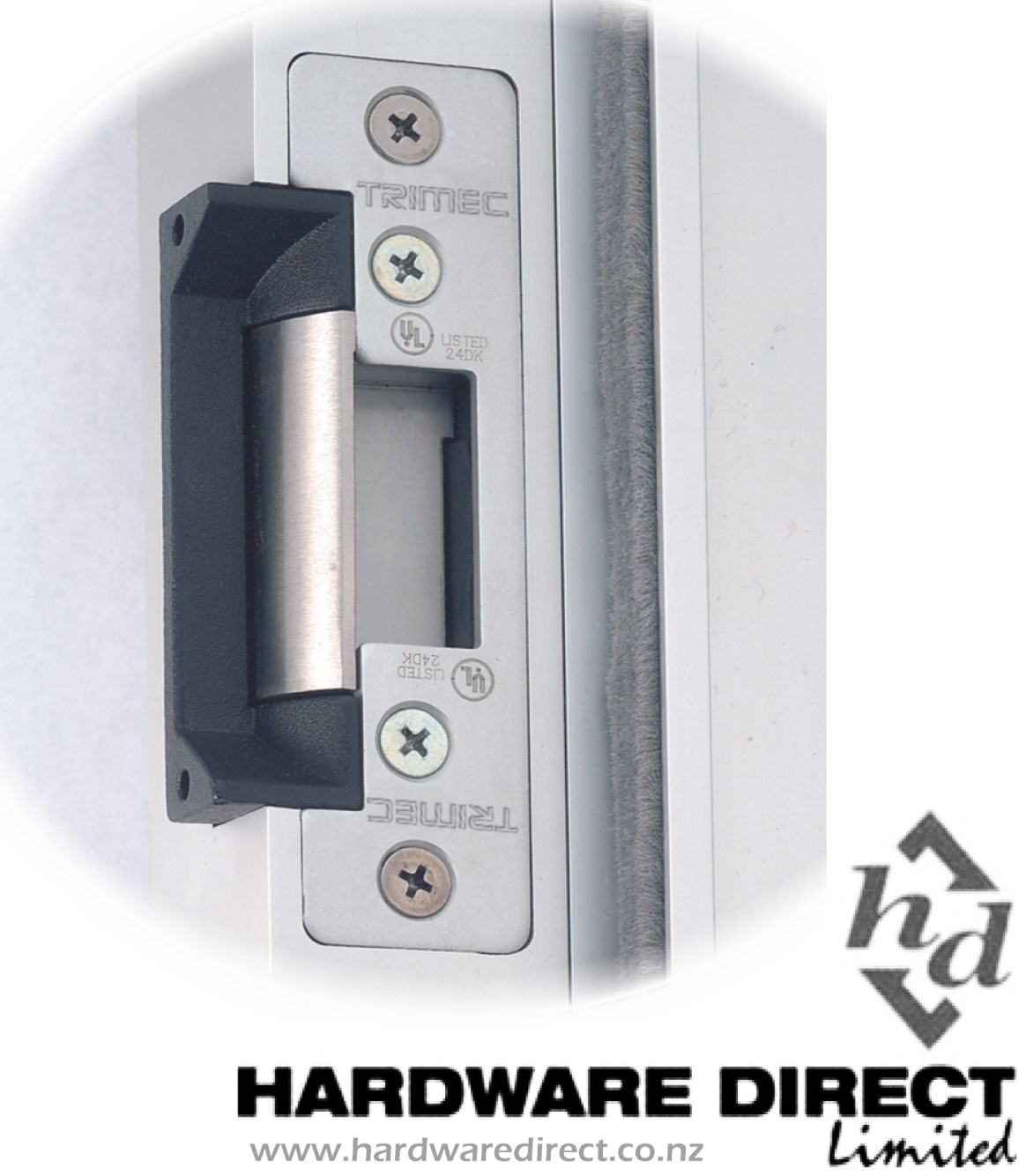

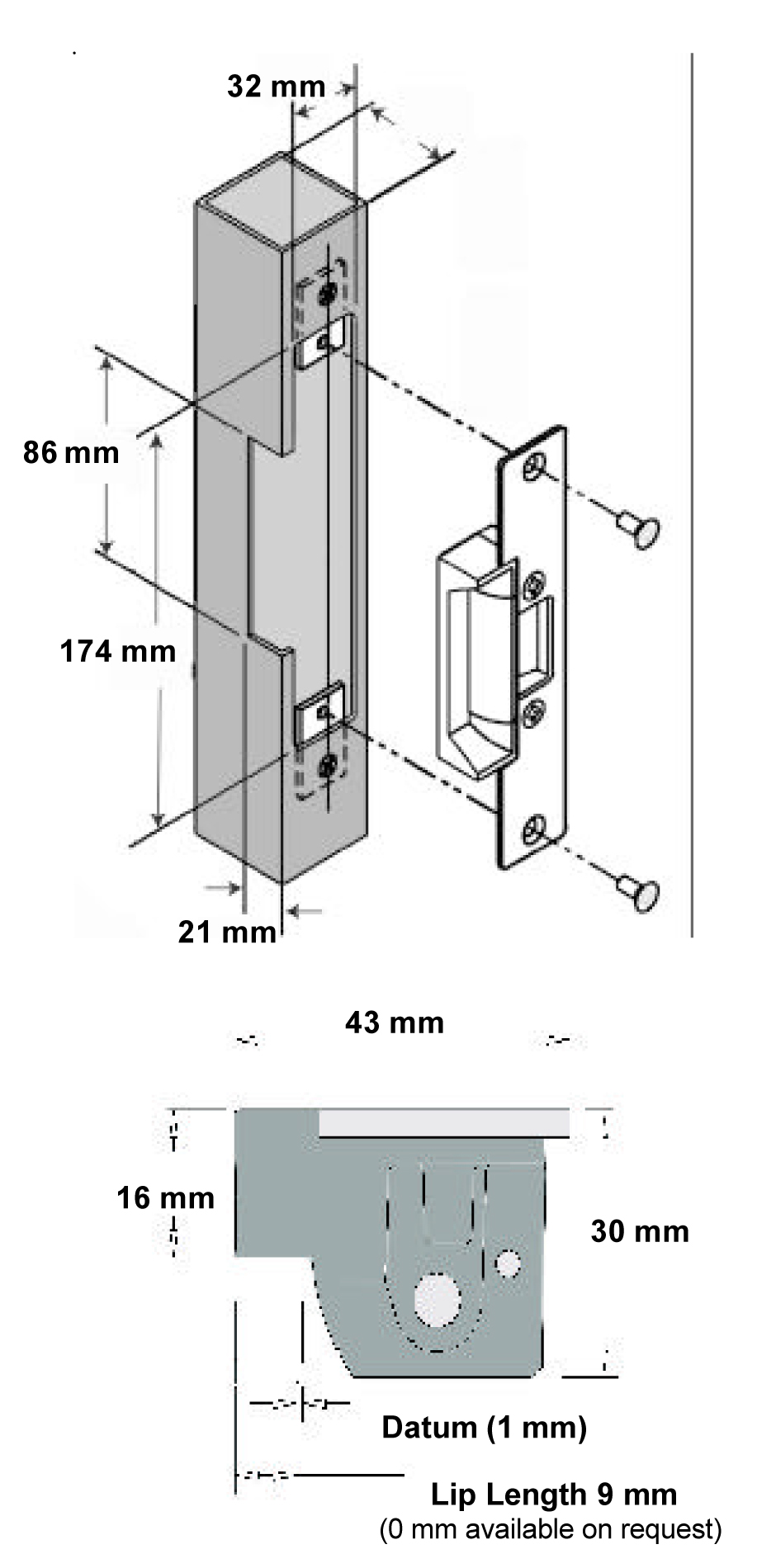

The ES100 is the shallowest ANSI strike in the Trimec range with a body depth of only 30mm. This robust electric strike has one-piece cast aluminium body with fewer moving parts than most strikes of it's type, making it extremely reliable. The ES100 will accept latch lengths up to 15mm long, and offers the same level of security and reliability usually provided by more expensive electric locking solutions. A wide variety of face plate options are available on request including DIN style face plates with integrated hole for deadbolt.

Electrical - 243 mA at 12 Volt DC - 187mA at 24 Volt DC Solenoids are rated for continuous use
Monitoring - None
Mechanical - Compliant with AS 4145.2 and UL 1034 Approved. Cycle tested to 1,000,000 operations. Static tested to 1363kg (3000lbs) holding force. Suitable for 15mm latch tongue with 3mm door gap
Warranty - Protected by TRICARE 5 year warranty
Environmental - Operational temperature range -20C to +60C IP 56 weather resistant construction available
