Specifications

54mm face/cross bore

25mm latch hole
32–36mm door thickness (plastic gasket)
37–50mm door thickness (rubber gasket)
Both gaskets are included in pack

Bolt

60-70mm adjustable backset

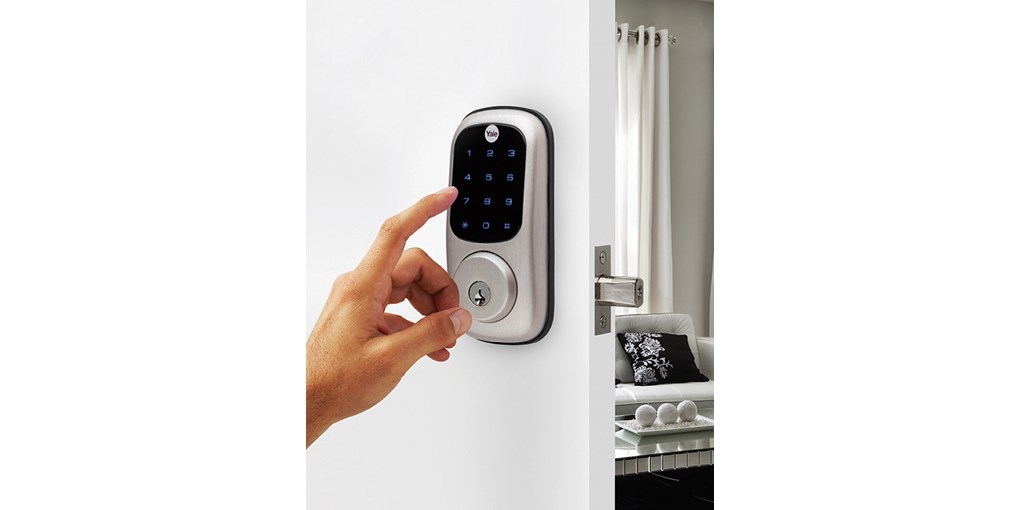

The Yale Touchscreen Digital Deadbolt offers key free access to your home. This latest DIY product release from Yale is easy-to-install and can easily replace an existing deadbolt on your home. The illuminated touchscreen pad is convenient for night time entry, and voice guide allows easy programming of up to 25 different user codes.

Product Features

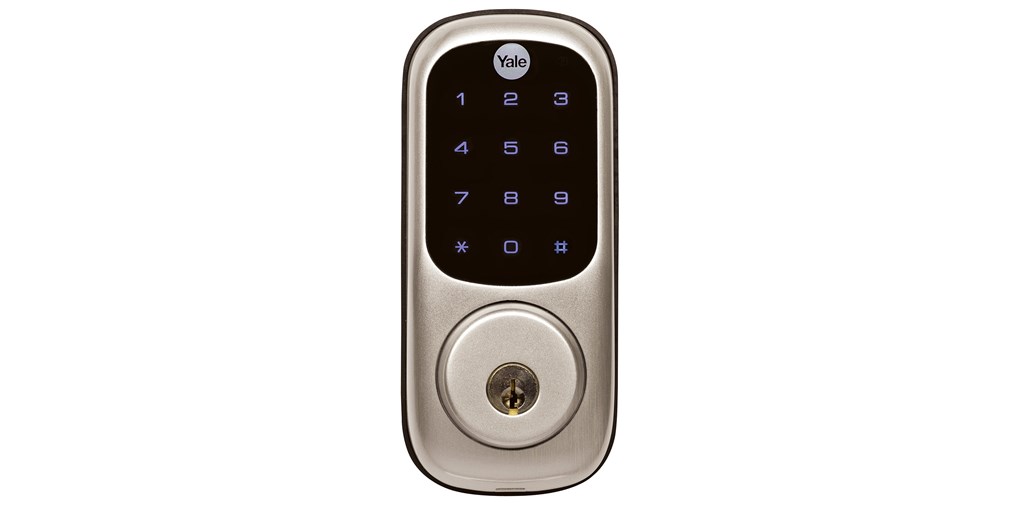

Touchscreen Keypad
No mechanical buttons, which means no trace of your secret pin code.

Pin Code Management
One master pin code, program up to 25 user codes.

Wrong code
Incorrect code entry: After 5 unsuccessful attempts at entering, a valid pin code the unit will shut down for 3 minutes and not allow operation.

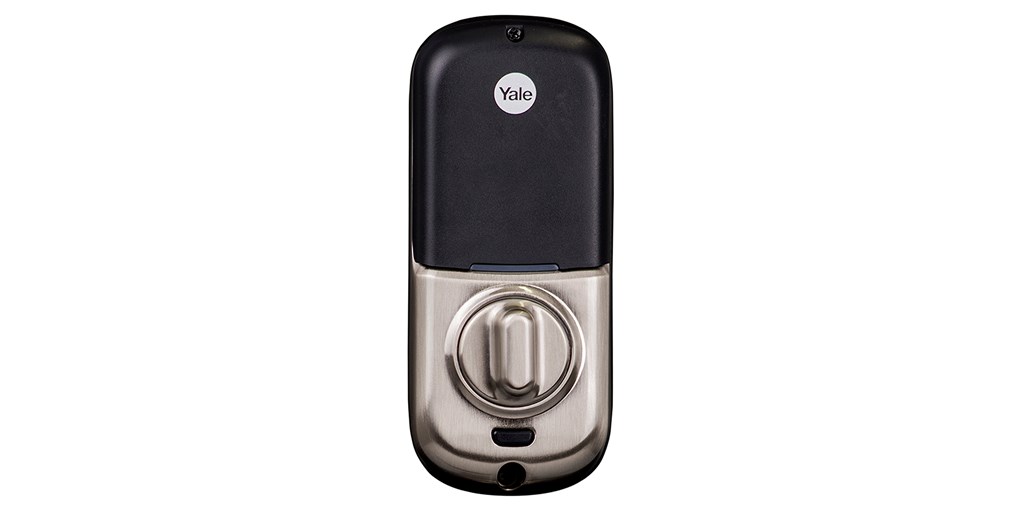

Privacy Function
Hold the inside button for 4 beeps, no one can open the lock with the keypad.

Tamper alarm
Audible alarm sounds if attempting to forcibly remove outside lock from door.

One Touch Locking
Allows a simple touch of the keypad on your way out to engage the latch bolt

Mechanical Key Override
In the event your battery goes flat, a key override will prevent you from being locked out.

Low battery Warning
When the battery is low, the status indicator will flash RED. If the battery power is completely lost, use the key override.

Voice and visual guides for programming
Voiced guided instructions will help you to program your lock. For added convenience, a light guide will also assist with programming.

Communication module
The ZWM-1 Z-Wave communication module allows the SYEDDB/220/NZ Yale Touchscreen Digital Deadbolt to communicate wirelessly and be remotely controlled via a Z-Wave enabled automation system. It simply plugs into the comms port under the battery cover of the lock.

Ordering

Downloads

Yale Touchscreen Deadbolt instructions - A5 booklet LOWRES

Yale Touchscreen Deadbolt Routing Diagram WEB

Yale Touchscreen Digital Deadbolt SYEDDB220NZ Brochure
