SKU : 1333

Specifications

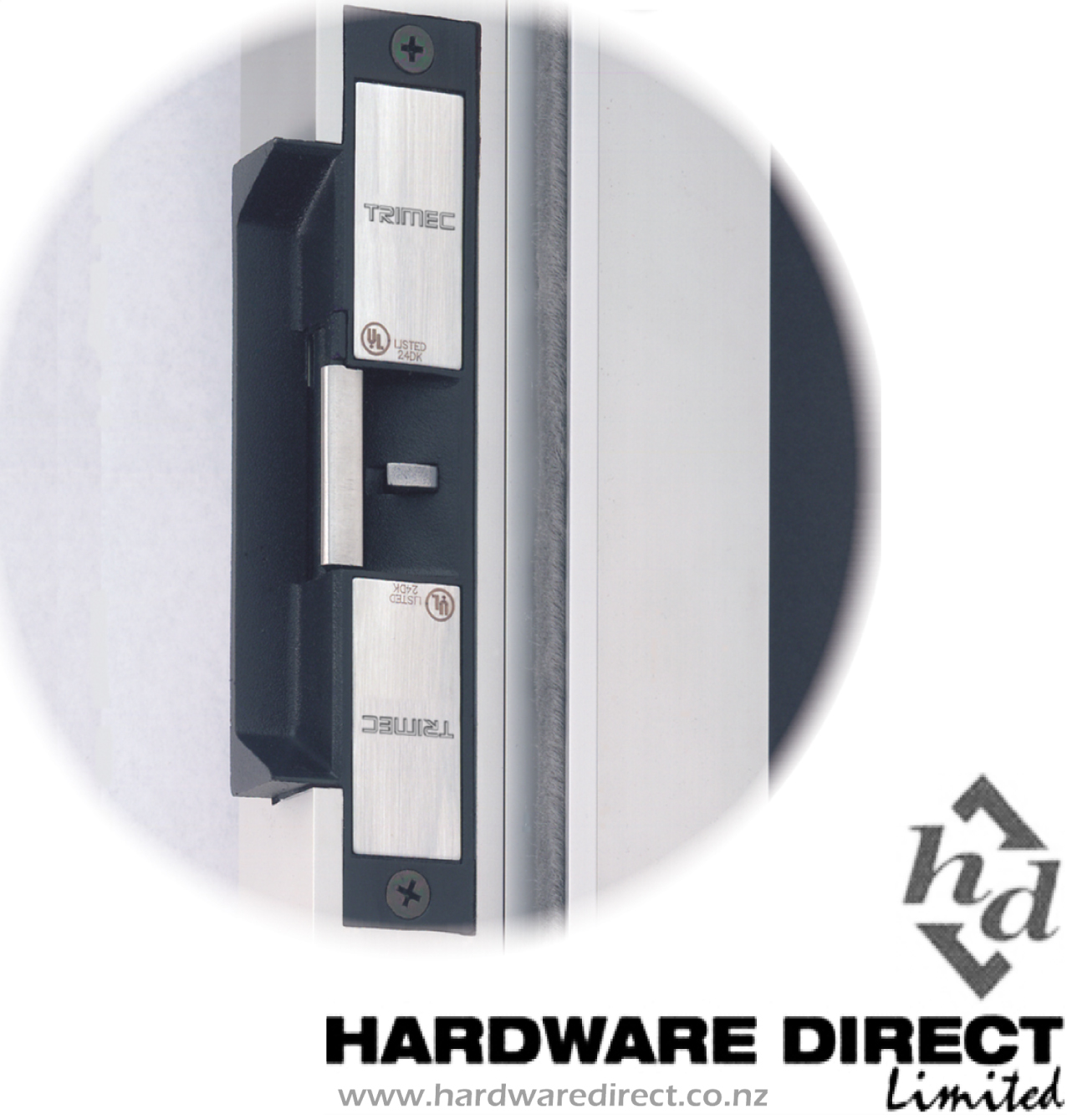

The ES200/ES2000 electric strikes are high security products manufactured from solid stainless steel and designed to be used with local and remote access control systems. Both strikes are suitable for use with any access control system using hinged doors which require either fire or security control as part of a building management system

Electrical - 175 mA at 12vdc - 88 mA at 24vdc. Solenoids are rated for continuous use.
Monitoring - Solenoid Monitor - 3amp NO/NC Microswitch
Door/Latch Monitor - 3 amps NO/NC Microswitch

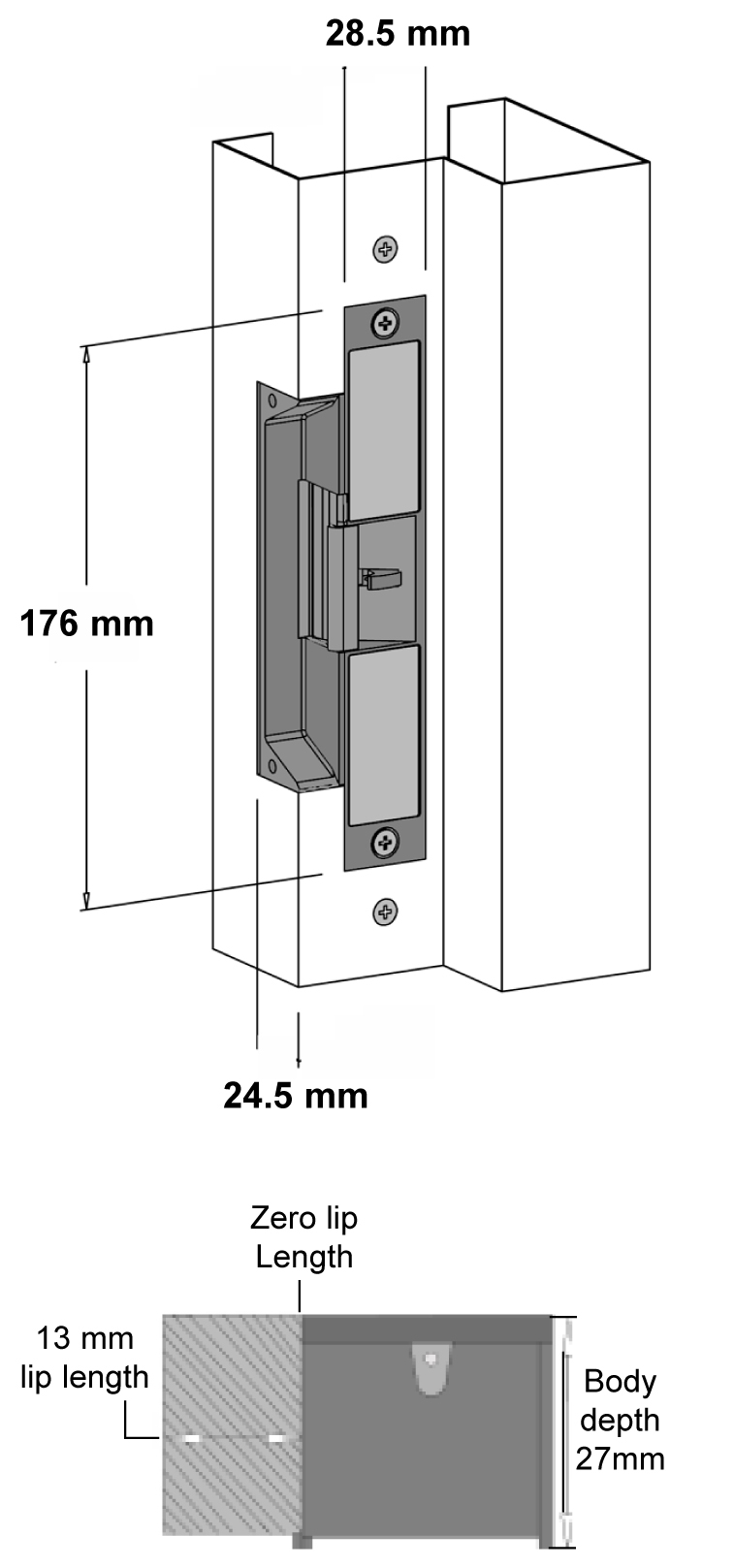

Mechanical - Exceeds UL1034 and AS4145.2 specifications. Static tested to 1363kg (3000lbs) holding force. Cycle tested to 1,000,000 operations. Suitable for 15mm latch tongue with 3mm door gap
Warranty - Protected by TRICARE 5 year warranty
Environment - Operational temperature range -20C to +60C degrees
